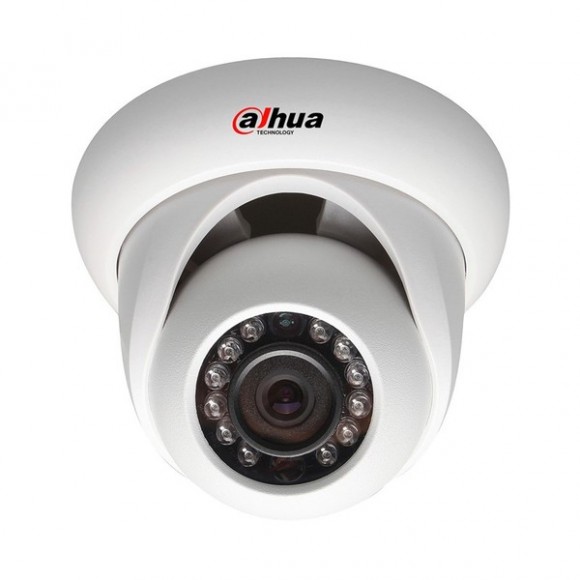

The IPC-HDBW5202P and IPC-HDBW5302P are IP Dome Camera from Dahua that comes with 3.9MM Motorised Lens, 2MP/3MP CMOS, ICR, 1080P features. Features: IPC-HDBW5202P 1/2.8” 2Megapixel progressive scan Exmor CMOS H.264 & MJPEG dual-stream encoding Max 25/30fps@1080P(1920×1080) DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7~12mm varifocal lens (5200) 3~9mm varifocal motorized lens (5202) Built-in 1/1 alarm in/out Max. IR LEDs Length 20m Micro SD memory, IP66, IK10, PoE IPC-HDBW5203P 1/3” 3Megapixel progressive scan Aptina CMOS H.264 & MJPEG dual-stream encoding Max 20fps@3M(2052×1536) & 25/30fps@1080P(1920×1080) DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7 ~12mm varifocal lens (HDBW5300) 3 ~9mm varifocal motorized lens (HDBW5302) Built-in 1/1 alarm in/out Max. IR LEDs length 20m Micro SD memory, IP66, IK10, PoE, Specifications: Model DH-IPC-HDBW5202P IPC-HDBW5300 Camera Image Sensor 1/2.8” 2Megapixel progressive scan Exmor CMOS 1/3” 3Megapixel Aptina CMOS Effective Pixels 1920(H)x1080(V) 2048(H)x1536(V) Scanning System Progressive Progressive Electronic Shutter Speed Auto/Manual 1/4~1/10000 Auto/Manual 1/3~1/10000 Min. Illumination 0.1lux/F1.4(color), 0Lux/F1.4(IR on) Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on) S/N Ratio More than 50db More than 50dB Video Output 1 port 1 port Camera Features Max. IR LEDs Length 20m 20m Day/Night Auto(ICR)/Color/B/W Auto(ICR)/Color/B/W Backlight Compensation BLC/HLC/DWDR BLC / HLC / DWDR White Balance Auto Auto Gain Control Auto/Manual Auto/Manual Noise Reduction 3D 3D Privacy Masking Up to 4 areas Up to 4 areas Lens Focal Length 2.7~12mm 2.7 -12mm 3 -9mm motorized F1.4 F1.4 F1.2 Max Aperture Manual Manual Auto Focus Control H: 100°(Wide) H: 82°(Wide)~25°(Tele) H: 86.5°(Wide)~28.6°(Tele) Angle of View ~30°(Tele) Manual /Auto Iris(DC) Motorized /Auto Iris(DC) Lens Type Manual/Auto Iris (DC) Board-in Type Mount Type Board-in Type Video H.264 / MJPEG Compression H.264/ MJPEG 3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576) / Resolution 1080P(1920×1080) /720P(1280×720) / D1(704×480) / CIF(352×240) CIF(352×288) Frame Rate Main Stream 1080P/720P(1 ~ 25/30fps) 3M(1~20fps)/1080P/720P(1~25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) D1/CIF(1 ~ 25/30fps) Bit Rate H.264: 32K ~ 8192Kbps H.264: 32K ~ 8192Kbps Audio Compression G.711a /G.711u /PCM G.711a / G.711u/ PCM Interface 1/1 channel In/Out 1/1 channel In/Out Network Ethernet RJ-45 (10/100Base-T) RJ-45 (10/100Base-T) Wi-Fi N/A N/A Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour ONVIF ONVIF Profile S ONVIF Profile S Max. User Access 20 users 20 users Smart Phone iPhone, iPad, Android, Windows Phone iPhone, iPad, Android, Windows Phone Auxiliary Interface Memory Slot Micro SD, Max 64GB Micro SD, Max 64GB RS485 N/A N/A Alarm 1/1 channel In/Out 1/1 channel In/Out PIR Sensor Range N/A N/A General Power Supply AC24V/DC12V, PoE(802.3af) DC12V/AC24V, PoE(802.3af) Power Consumption Max 5W Max 5W (Motorized lens: +3.5W) Working Environment -20°C~+60°C, Less than 90% RH -20°C~+60°C , Less than 90%RH Ingress Protection IK10 IP66 Vandal Resistance IP66 IK10 Dimensions Φ151mm×119mm Φ151mm×119mm Weight 1.25kg 1.25kg
