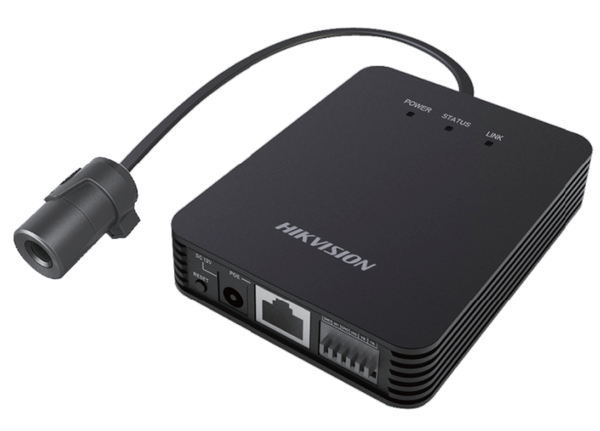

Ever want to make a camera less visible, hide it from view, be discrete? For example, maybe condo rules prohibit you from having a camera, or you want cameras in your home, but you don’t want them to stick out for aesthetic reasons. The Hikvision DS-2CD6412FWD-30 may be for you. The camera electronics are in a box about 4 x 3″ and 1 1/4″ tall, the camera itself is about 2″ long. While the concept is not new, the Axis P12 has been out about year, but the price point makes this an affordable choice. The Hikvision DS-2CD6412FWD30 Camera is a 1.3MP Tubular PinHole Camera that comes with 4mm, 3D DNR, WDR, I/O, 2m cable and inc. Bracket features. Features: 1/3″ progressive scan CMOS Up to 1.3MP resolution 120dB WDR ROI codec Onboard storage, up to 64GB Triple video streams Audio/Alarm IO Specifications: Camera Image Sensor: 1/3″ Progressive Scan CMOS Min. Illumination: Color: 0.01lux @(F1.2, AGC ON)B/W: 0.001lux @(F1.2, AGC ON) Shutter time: 1s ~ 1/100,000s Lens: 4mm @ F2.0, angle of view: 73.1 ° (2.0mm, 2.8mm, 6mm, optional) Lens Mount: M12 Day& Night: Electronic Wide Dynamic Range: 120 dB Digital noise reduction: 3D DNR Compression Standard Video Compression: H.264 / MPEG4 / MJPEG Bit Rate: 32 Kbps ~ 16 Mbps Audio Compression: G.711/G.726/MP2L2 Triple Streams: Yes Image Max. Image Resolution: 1280×960 Frame Rate: 50Hz: 25fps (1280 × 960), 25fps (1280 × 720)60Hz: 30fps (1280 × 960), 30fps (1280 × 720) Third Stream: 50Hz: 25fps (1280 × 960)60Hz: 30fps (1280 × 960) Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: Yes, zone configurable HLC: Support ROI: Max. 4 ROI areas Picture Overlay: 128 x 128, BMP 24bit, zone configurable Network Network Storage: NAS Alarm Trigger: Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour Security: User Authentication, Watermark, IP address filtering, anonymous access System Compatibility: ONVIF, PSIA, CGI, ISAPI Interface Audio Input: 1-ch 3.5 mm audio interface, MIC IN/LINE IN Audio Output: 1-ch 3.5mm audio interface (line level, 600 Ω) Communication Interface: 1 RJ45 10M/100M Ethernet interface/1 RS232 Alarm Input: 1 Alarm Output: 1 Video Input: 1 RJ12 interface On-board storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB General Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing) Power Supply: 12 VDC ± 10%, PoE (802.3af) Power Consumption: Max. 6.5 W Dimensions: 78×105×32mm Weight: 450g NOTE：: -10: Cylindrical sensor unit-20: L-shaped sensor unit* Different brackets included for each sensor unit.
