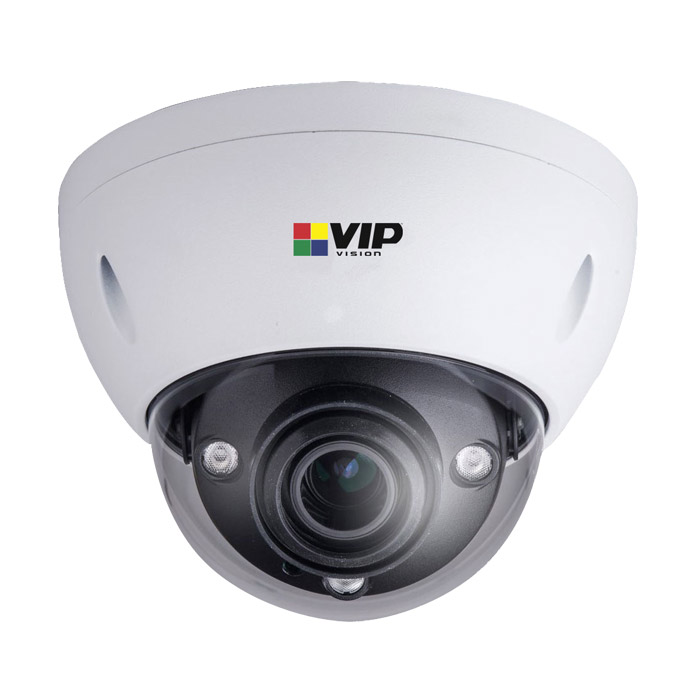

The best in image resolution and professional features in a single camera. Be amazed with broadcast quality Ultra HD resolution video, streamed in real-time up to 16Mbps.Camera Features:• Stream Ultra HD 8.0 megapixel (3840 x 2160) at 25fps • 4.1 ~ 16.4mm motorised lens with 106 ~ 32° viewing angles • Day/night (auto ICR) with 50m maximum infrared range • Digital wide dynamic range with back/highlight compensation • 3D digital noise reduction and auto white balance • MicroSD card slot for at-the-edge recording, up to 128GB • Audio and alarm interface input/output; BNC video output • Supports triple stream and smart detection technologies • IP67/IK10 weather/vandal resistant housing for external use • ONVIF, PSIA and CGI compliance Specifications Warranty (Years) 4 Alarm Interface 2 ch. input / 1 ch. output Angle of View 106° (wide) ~ 32° (tele) Audio Compression G.711a / G.711u / AAC Audio Input 1 ch. Input / 1ch. Output Backlight Compensation BLC / HLC / DWDR Bit Rate H.264: 32K ~ 16Mbps Camera Style Weather/Vandal Resistant Dome Camera Type Dome Day/Night Auto (ICR) / Colour / B&W Dimensions Ø159 x 118mm Effective Pixels 4000 (H) x 3000 (V) Electronic Shutter Auto / Manual (1/3 ~ 1/10000s) Frame Rate – Main 12.0MP (1 ~ 12fps) / 8.0MP and lower (1~25fps) Frame Rate – Sub D1 and lower (1 ~ 25fps) Frame Rate – Third 1080p and lower (1 ~ 25fps) Gain Control Auto / Manual Image Sensor 1/1.7” 12.0 Megapixel Progressive Scan CMOS Ingress Protection IP67 Lens 4.1 ~ 16.4mm F1.4 Motorised Lens with Auto Iris (DC) Maximum Infrared Range 50m Memory Slot MicroSD slot up to 128GB Minimum Illumination 0.05 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on) Network Interface RJ45 (10/100/1000 Base-T) Noise Reduction 3D Digital Noise Reduction ONVIF Conformance ONVIF, PSIA, CGI Compliant Operating Environment -40° to 60°C / RH95% (max) Power Consumption < 24W Power Input 12VDC / 24VAC (optional) / PoE (802.3at) Signal Noise Ratio > 50dB Smart Functions Tripwire / Intrusion / Scene Change / Face Detection / Missing & Abandoned Object / Audio & Defocus Detect Tri-Axis Mounting No Vandal Resistant IK10 Video Compression H.264 / MJPEG Video Output 1 channel, BNC (1.0Vp-p, 75 ohm) Video Resolution Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288) Weight 1.10kg White Balance Auto / Manual
