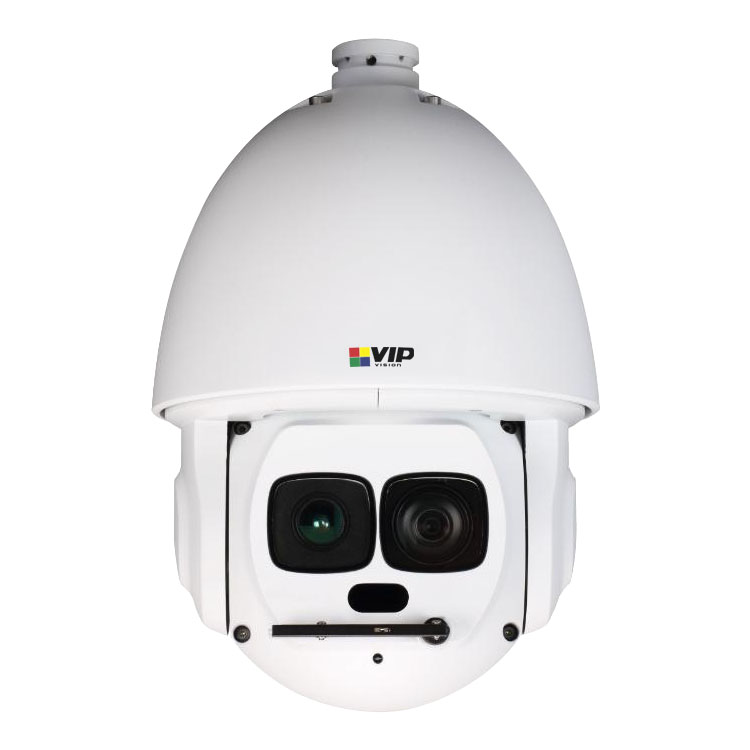

An outstanding performer in long range surveillance applications, this formidable 40x optical zoom PTZ is also equipped with 500m laser infrared and configurable auto-tracking.Camera Features- Stream up to 2.0 megapixel (1920 x 1080) at 25fps- 7.9 ~ 316mm 40x optical zoom lens with 41 ~ 1.1° viewing angles- Auto tracking with 8 intelligent video analytics functions- Day/night (auto ICR) with back/highlight compensation- 2° ~ 60° beam angle laser infrared up to 500m- Endless 360° panning with -10 ~ 90° tilt adjust; auto-flip 180°- MicroSD card slot for at-the-edge recording, up to 64GB- Audio and alarm interface input/output- Features lens/IR wiper, ultra DNR and defog functionality- IP67 weather resistant housing for external use Specifications Warranty (Years) 4 Alarm Interface 7 ch. input / 2 ch. output Angle of View 41.5° (wide) ~ 1.1° (tele) Audio Compression G.711a / G.711u / PCM Audio Input 1 ch. Input / 1 ch. Output Backlight Compensation BLC / HLC / DWDR Bit Rate H.264: 56K ~ 8192Kbps Camera Style Weather Resistant Auto-Tracking PTZ Dome Camera Type PTZ Dome Day/Night Auto (ICR) / Colour / B&W Dimensions Ø240 x 357mm Effective Pixels 1944 (H) x 1092 (V) Electronic Shutter Auto / Manual (1/1 ~ 1/30000s) Frame Rate – Main 1080p and lower (1 ~ 25fps) / 720p (1 ~ 50fps) Frame Rate – Sub D1 and lower (1 ~ 25fps) Frame Rate – Third 720p and lower (1 ~ 25fps) Gain Control Auto / Manual Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan Exmor CMOS Ingress Protection IP67 Lens 7.9 ~ 316mm F1.6 ~ F6.1 Motorised Lens Maximum Infrared Range 500m; Auto/Manual beam angle control; 2° ~ 60° Memory Slot MicroSD slot up to 64GB Minimum Illumination 0.05 Lux at F1.6 (Colour) / 0.005 Lux at F1.6 (B&W) Network Interface RJ45 (10/100 Base-T) Noise Reduction 2D / 3D Ultra Digital Noise Reduction ONVIF Conformance ONVIF, PSIA, CGI Compliant Operating Environment -40°C to 70°C / RH90% (max) Power Consumption 20W / 43W (IR & Heater on) Power Input 24VAC / Hi-PoE PTZ Manual Speed Pan: 0.1 ~ 240°/s; Tilt: 200°/s PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan PTZ Pan / Tilt Range Pan: 0 ~ 360° (endless) / Tilt: -10 ~ 90° / Auto-flip 180° PTZ Preset Speed Pan: 240°/s; Tilt: 200°/s PTZ Presets Up to 80 PTZ Speed Setup Human oriented speed & focal length adaptation PTZ Start-up Action Auto-restore to previous PTZ/lens status Signal Noise Ratio > 55dB Smart Functions Auto Tracking (Single, Multiple & Panorama Scenes) / Tripwire / Warning Zone / Perimeter Protection / Loitering Detection / Abandoned Object / Missing Object / Illegal Parking / Fast Object Detection Vandal Resistant N/A Video Compression H.264 / MJPEG Video Output 1 channel, BNC (1.0Vp-p, 75 ohm) Video Resolution Configurable from 2.0MP (1920 x 1080) to CIF (352 x 288) Weight 6.75kg White Balance Auto / Manual / ATW / Indoor / Outdoor
